Stainless Steel Wire Cloth Twill Dutch Woven
Dutch woven wire cloth or wire mesh is also known as filter wire cloth due to its popular application in filter industries.
Materials for Dutch Weave Wire Cloth: Quality stainless steel wire 304, 304L, 316, 316L, etc.
Typical Weaving Patterns: Dutch plain, Dutch twill, Dutch reverse.
Applications: Filtering and screening in airspace, oil and chemicals.

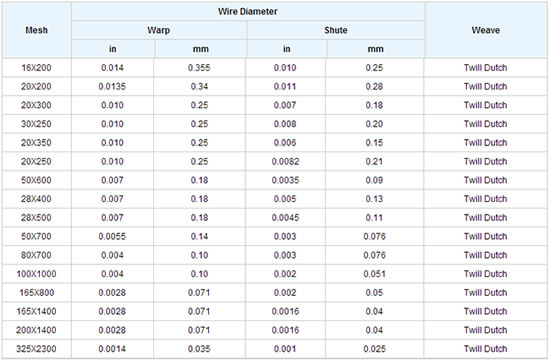

| Stainless Steel Wire Cloth Twill Dutch Woven |
| Gauge |
Mesh |
Wire Diameter |
Reference values of particles passed |
| 80II |
20x250 |
0.28x0.2 |
38 |
| 120II |
30x300 |
0.25x0.18 |
36 |
| 200II |
50x500 |
0.14x0.11 |
34 |
| 320I |
80x700 |
0.11x0.08 |
32 |
| 320II |
80x780 |
0.10x0.07 |
30 |
| 360 |
90x780 |
0.10x0.07 |
25 |
| 400I |
100x780 |
0.10x0.07 |
22 |
| 400II |
100x900 |
0.10x0.063 |
20 |
| 500 |
120x1100 |
0.07x0.05 |
17 |
| 630 |
150x1400 |
0.063x0.04 |
16 |
| 650 |
180x1800 |
0.07x0.04 |
14 |
| 685 |
165x1400 |
0.063x0.032 |
13 |
| 795I |
200x1400 |
0.07x0.04 |
12 |
| 795II |
200x1800 |
0.05x0.032 |
10 |
| 850 |
2l0x1900 |
0.045x0.03 |
10 |
| 1000 |
250x2000 |
0.045x0.028 |
8 |
| 1125 |
280x2200 |
0.036x0.026 |
7 |
| 1225 |
300x2200 |
0.036x0.026 |
6 |
| 1280 |
325x2300 |
0.035x0.025 |
5 |
| 1600 |
400x2800 |
0.03x0.018 |
3 |
|
